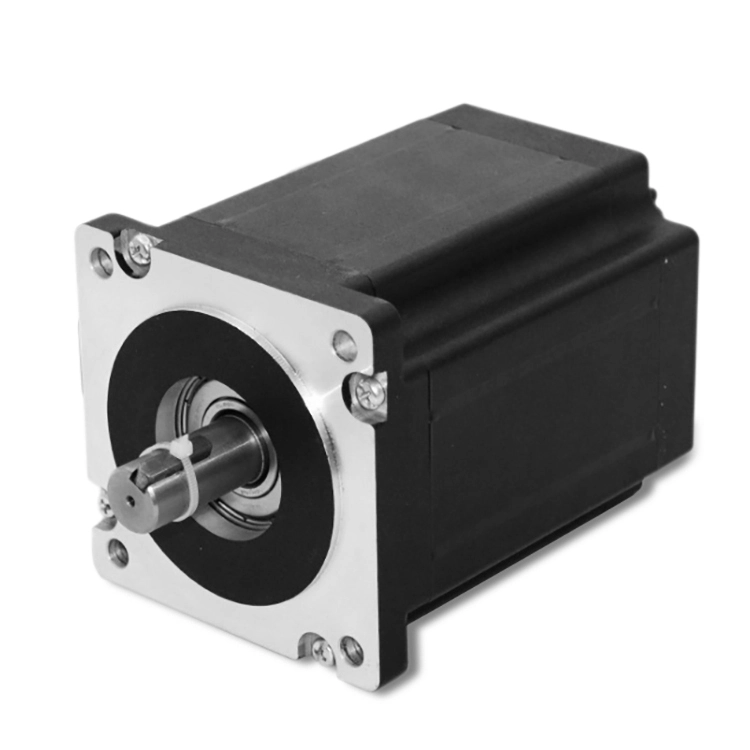

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 1

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 2

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 3

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 4

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 5

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 6

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor

Power range:

400-2000W

Voltage range:

24-310VDC

Speed range:

1500-4000rpm

Torque range:

1.27-6.37N.m

Life:

5000h

Inquiry

Write a Review

Information

Description

20pxEnvironmental Conditons	—20℃~50℃	Work Condition	S1.S2.S3
Rotation Direction	CW/CCW	Insulation Class	B-H
Noise	≤75dB	Protection level	IP40
Bearing Type	High Quality Ball Bearing	Number Of Poles	8
Phase Number	3	/	/

Advantages

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 7

High efficiency:

BLDC motors are generally more efficient than brushed motors due to the brushless design that eliminates frictional losses between the brushes and commutators, especially under high load conditions

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 8

Low maintenance:

Since there are no brushes, the BLDC motor does not need to replace the brushes regularly, reducing the maintenance cost and time.

High reliability and long life:

The brushless design reduces mechanical wear and improves the reliability and service life of the motor.

High power density:

BLDC motors can provide high power output in a small volume, making them suitable for applications where space is limited.

Precise speed and position control:

Due to the electronic commutation mode of BLDC motors, precise speed and position control can be realized, which is suitable for applications that require high-precision control.

Quiet operation:

The brushless motor operates with low noise because there is no frictional noise of the brushes and commutators.

High speed:

BLDC motor can achieve high speed, suitable for high-speed applications, such as power tools and high-speed rotating equipment.

Better thermal management:

The stator of brushless motors is usually surrounded by the rotor, which has a better heat dissipation effect and helps to improve the efficiency and life of the motor.

Overall, single-stage series motors are widely used in many applications that require high performance and flexibility due to their advantages such as high speed, high power density, good start-up performance, and cost-effectiveness.

Motor Technical Data

Model	Voltage	No-load		Rated Load				Stall		Core Thickness
	Voltage	Speed	Current	Power	Speed	Torque	Current	Torque	Current	Core Thickness
	V	rpm	A	W	rpm	N.m	A	N.m	A	N.m
BG-110BLDC-4830S	48	4000	3.26	1000	3000	3.18	26.0	9.55	78.13	110
BG-110BLDC-31030S-1	310	4000	0.76	1500	3000	4.78	6.0	14.33	18.15	140
BG-110BLDC-31030S-2	310	4000	1.01	2000	3000	6.37	8.1	19.10	24.19	170
BG-110BLDC-31030S-3	310	4000	1.51	3000	3000	9.55	12.1	28.65	36.29	230

* This data is only representative data, specific products can be customized

Mechanical Dimensions

Customizable solutions

● Can provide custom voltage, electrical performance, circuit, etc.

● And shaft, installation flange, lead wire, high-temperature class, drive, etc.

● If you have any other needs, please contact our sales engineers

Parts

1720182582350-1719576644739-1623206098114731

Applications

Details

In order to ensure that we recommend and provide you with the right brushless DC motor solution, the following key details need to be determined:

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 18

Application requirements:

1、Specific application scenarios (e.g., industrial robots, drones, power tools, AGVs, medical devices, etc.)。Required operating environment (e.g., temperature range, humidity, dust and water resistance, etc.)

BG110BL110 Variable Speed 48V 2000W Adjustable robot brushless DC motor 19

Motor Specifications:

Rated voltage and current。Rated power and peak power。Speed range (RPM, rpm)。Torque requirements (rated torque and maximum torque)。Efficiency requirements。

Size & Weight:

Dimensions (diameter, length, etc.)。Weight limit。

Control Requirements:

Control type (e.g. open-loop control, closed-loop control)。Type of sensor required (e.g. Hall sensor, encoder)。

Connection & Installation:

Type and size of shaft。Installation method (flange mounting, base mounting, etc.)Wiring method and connector type

Power Requirements:

Power supply type (DC power, battery, AC power, etc.)。Rated voltage range and allowable voltage fluctuations

Environmental condition :

Ingress protection (e.g. IP rating)。Operating temperature range。Vibration and shock resistance。

Other special requirements:

Noise level (for noise-sensitive applications, choose a low-noise, low-vibration motor)。Electromagnetic Compatibility (EMC)。Lifetime and reliability requirements。(such as CE, UL, RoHS, etc.)。

By taking all of the above into account, it is possible to more precisely select the most suitable brushless motor model and configuration for a particular application.
