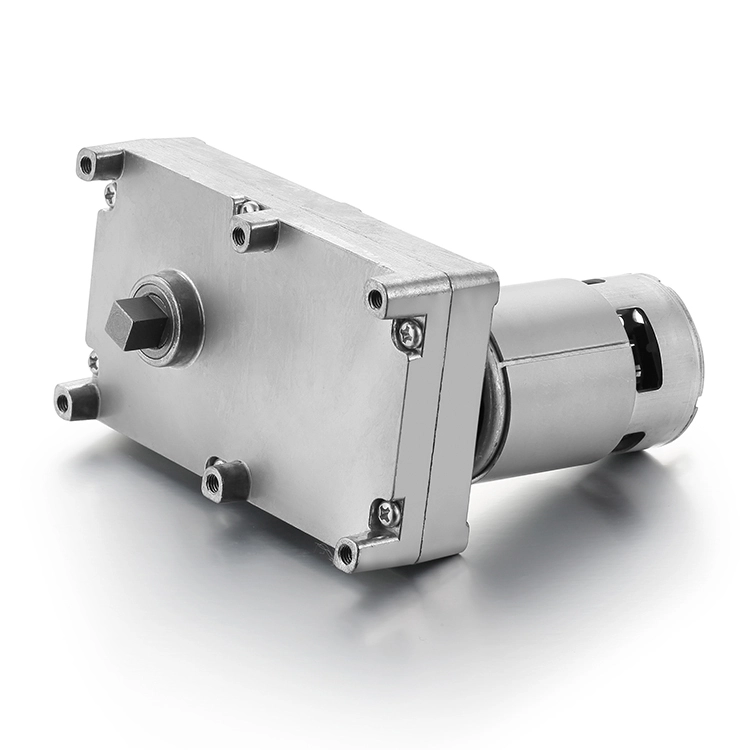

BG555 DC brushed worm gear motor

Power range:

3-13.5W

Voltage range:

12-24VDC

Speed range:

2000-6000rpm

Torque range:

0.01-0.03N.m

Life:

800h

Inquiry

Write a Review

Information

Description

Environmental condition	-20℃-50℃	Swerve	CW/CCW
Noise	≤75dB	Working system	s1
Insulation level	B-H	Protection level	IP40
Gear material	Metal	Bearing Type	High Quality Ball Bearing
Max.Radial load	≤50N	Radial play of shaft	≤20N
Axial play of shaft	≤0.03mm	Rated tolerance torque	30Kg.cm

Advantages

Self-locking function

The worm gear motor has a self-locking function, which can prevent reverse movement, and is suitable for lifting and safety braking and other occasions that need to prevent reverse movement.

Compact structure

The worm gear motor provides a large reduction ratio while being relatively small in size and compact in structure.

Low vibration and noise

Due to the large gear contact surface, the vibration and noise of worm gear motors are low.

Smooth transmission

The meshing mode of the worm gear ensures the stability of the transmission, which is suitable for occasions that require stable transmission.

Motor Technical Data

Model	Voltage	No-load		Rated Load				Stall		Body Length
	Voltage	Speed	Current	Power	Speed	Torque	Current	Torque	Current	Body Length
	V	rpm	A	W	rpm	Kg.cm	A	Kg.cm	A	L:mm
BG-555DC-1244S	12	5000	0.25	9	5300	0.16	1.7	0.48	5.10	57.5
BG-555DC-2431S	24	4000	0.15	6.4	3400	0.18	0.7	0.54	2.10	57.5

Model	Reduction ratio	1：X	1：4	1：14	1：19	1：27	1：51	1：71	1：100	1：139
Model	Gearbox length	L：mm	26.0	33.5			40.5
BG-775DC-1235S-PG42	NO-load speed	rpm	1250	357	263	185	98	70	50	36
	Rated speed	rpm	1325	379	279	196	104	75	53	38
	Rated torque	Kg.cm	0.70	2.30	3.00	4.32	7.68	10.06	15.32	20.81

* This data is only representative data, specific products can be customized

Mechanical Dimensions

Customizable solutions

● Can provide custom voltage, electrical performance, circuit, etc.

● And shaft, installation flange, lead wire, high-temperature class, brake accessories, gearbox, encoder, driver, etc.

Parts

Applications

Details

In order to ensure that we recommend and provide you with the right DC motor solution, the following key details need to be determined:

Scenarios and working conditions

Determine what kind of application the geared motor will be used for, such as conveyor machinery, lifting equipment, conveyor belts, etc.
Determine operating conditions, such as ambient temperature, humidity, and whether waterproof, dust proof, and other characteristics are required.

Required output parameters

Determine the required output speed and output torque.
Determine the required reduction ratio, i.e., the ratio of the speed of the input shaft to the output shaft.

Space constraints and installation requirements

Determine the size and shape of the installation space
Determine if there are special installation requirements, such as vertical installation, horizontal installation, etc.

Motor performance and efficiency requirements

Determine the requirements for motor efficiency, such as whether a high-efficiency motor is required to save energy
Determine the requirements for the stability of the motor operation and the noise level.

Economic considerations

Consider the customer's budget constraints and recommend products that fit the budget and meet the needs.

Additional Features and Special Requirements

If there are special functional requirements, such as self-locking function, emergency braking function, etc., you need to understand the specific needs of customers in detail.

By understanding these details in detail, we can recommend the most suitable DC brush motor for customers to ensure that it can operate stably, reliably and efficiently in specific applications.
