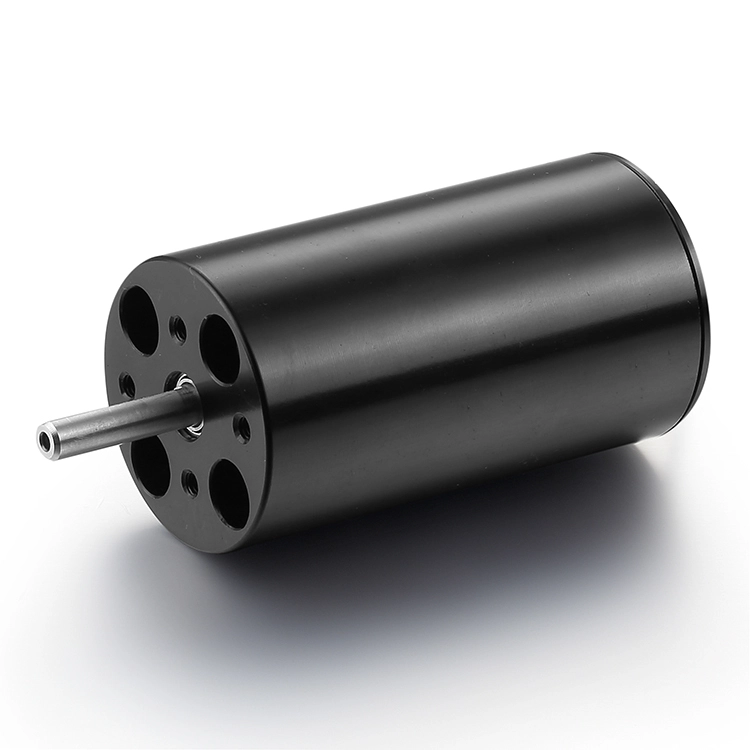

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 1

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 2

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 3

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 4

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 5

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor

Model:

BG36BL60

Power range:

10-50W

Voltage range:

12-48VDC

Speed range:

3000-6000rpm

Torque range:

0.03-0.16N.m

Life:

≥5000H

Inquiry

Write a Review

Information

Description

Environmental Conditons	—20℃~50℃	Work Condition	S1
Rotation Direction	CW/CCW	Insulation Class	B-H
Noise	≤65dB	Protection Class	IP40
Magnetic Material	High Performance NdFeB Magnet	Number Of Poles	4
Phase number	3	/	/

Advantages

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 6

High efficiency

BLDC motors are generally more efficient than brushed motors due to the brushless design that eliminates frictional losses between the brushes and commutators, especially under high load conditions

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 7

Low maintenance

Since there are no brushes, the BLDC motor does not need to replace the brushes regularly, reducing the maintenance cost and time.

High reliability and long life

The brushless design reduces mechanical wear and improves the reliability and service life of the motor.

High power density

BLDC motors can provide high power output in a small volume, making them suitable for applications where space is limited.

Precise speed and position control

Due to the electronic commutation mode of BLDC motors, precise speed and position control can be realized, which is suitable for applications that require high-precision control.

Quiet operation

The brushless motor operates with low noise because there is no frictional noise of the brushes and commutators.

High speed

BLDC motor can achieve high speed, suitable for high-speed applications, such as power tools and high-speed rotating equipment.

Better thermal management

The stator of brushless motors is usually surrounded by the rotor, which has a better heat dissipation effect and helps to improve the efficiency and life of the motor.

Motor Technical Data

Model	Voltage	No-load		Rated Load				Stall		Body Length
	Voltage	Speed	Current	Power	Speed	Torque	Current	Torque	Current	Body Length
	V	rpm	A	W	rpm	Nm	A	Nm	A	L:mm
BG-36BLDC-1218S	12	2400	0.10	7	1835	0.036	0.8	0.10	2.70	60
BG-36BLDC-1225S	12	3200	0.1	9.4	2500	0.036	1.0	0.1	2.70	60
BG-36BLDC-1830S	18	4000	0.10	11	3000	0.036	0.8	0.12	2.82	60
BG-36BLDC-2440S	24	5200	0.1	15	4000	0.035	0.8	0.75	2.49	60

* This Data Is Only Representative Data, Specific Products Can Be Customized

Mechanical Dimensions

Customizable solutions

● Can provide custom voltage, electrical performance, circuit, etc.

● And shaft, installation flange, lead wire, high-temperature class, drive, etc.

● If you have any other needs, please contact our sales engineers

Parts

1720592306123-1720182582350-1719576644739-16232060

Applications

Details

In order to ensure that we recommend and provide you with the right brushless DC motor solution, the following key details need to be determined:

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 17

Application requirements

● Specific application scenarios (e.g., industrial robots, drones, power tools, AGVs, medical devices, etc.)
● Required operating environment (e.g., temperature range, humidity, dust and water resistance, etc.)

BG36BL60 36mm 48V 6000Rpm Low Noise ebike brushless dc motor 18

Motor Specifications

● Rated voltage and current
● Rated power and peak power
● Speed range (RPM, rpm)
● Torque requirements (rated torque and maximum torque)
● Efficiency requirements

Size & Weight

● Dimensions (diameter, length, etc.)
● Weight limit

Control Requirements

● Control type (e.g. open-loop control, closed-loop control)
● Type of sensor required (e.g. Hall sensor, encoder)

Connection & Installation

● Type and size of shaft
● Installation method (flange mounting, base mounting, etc.)
● Wiring method and connector type

Power Requirements

● Power supply type (DC power, battery, AC power, etc.)
● Rated voltage range and allowable voltage fluctuations

Environmental conditions

● Ingress protection (e.g. IP rating)
● Operating temperature range
● Vibration and shock resistance

Vibration and shock resistance

● Noise level (for noise-sensitive applications, choose a low-noise, low-vibration motor)
● Electromagnetic Compatibility (EMC)
● Lifetime and reliability requirements
● (such as CE, UL, RoHS, etc.)

By taking all of the above into account, it is possible to more precisely select the most suitable brushless motor model and configuration for a particular application.
