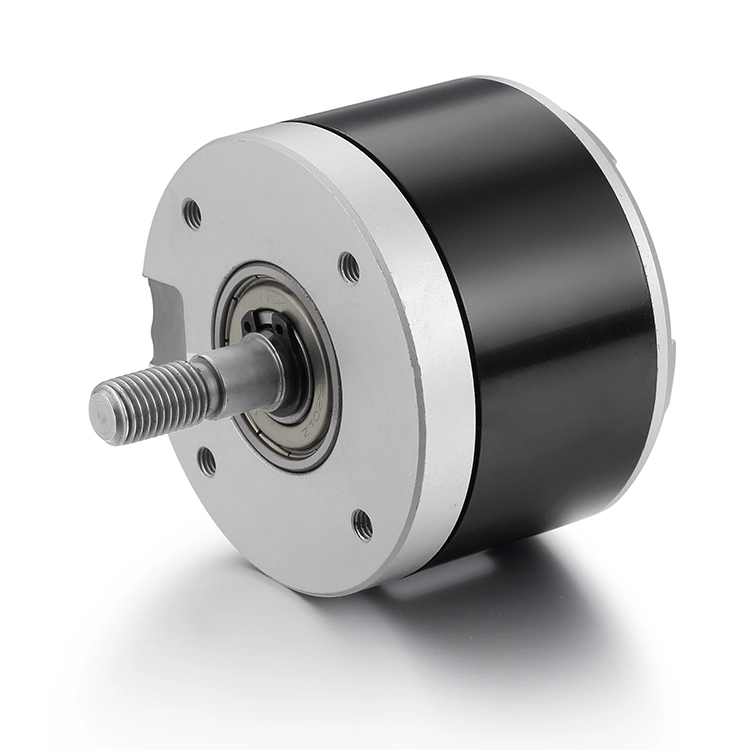

BG7050 High power 48V 1200W brushed dc Motor for robot arm 1

BG7050 High power 48V 1200W brushed dc Motor for robot arm 2

BG7050 High power 48V 1200W brushed dc Motor for robot arm 3

BG7050 High power 48V 1200W brushed dc Motor for robot arm 4

BG7050 High power 48V 1200W brushed dc Motor for robot arm 5

BG7050 High power 48V 1200W brushed dc Motor for robot arm

Model:

BG 7050

Range of Power:

500-1200W

Range of Voltage:

12-48VDC

Range of Rated Speed:

3000-8000rpm

Range of Rated Torque:

0.36-1.43N.m

Lifespan:

5000-20000Hours

Inquiry

Write a Review

Information

Description

20pxEnvironmental Conditons	—20℃~50℃	Work Condition	S1
Rotation Direction	CW/CCW	Insulation Class	B-H
Noise	≤65dB	Protection Class	IP40
Motor type	BG7050	Number Of Poles	22
Magnetic Material	High Performance NdFeB Magnet	Life	3000h

Advantages

BG7050 High power 48V 1200W brushed dc Motor for robot arm 6

High Efficiency

Due to the brushless design that eliminates frictional losses between the brushes and the commutator, BLDC motors are generally more efficient than brushed motors, especially under high load conditions.

BG7050 High power 48V 1200W brushed dc Motor for robot arm 7

Low Maintenance

Since there are no brushes, BLDC motors do not need to be replaced regularly, reducing maintenance costs and time.

High Reliability And Long Life

The brushless design reduces mechanical wear and improves the reliability and service life of the motor

High Power Density

BLDC motors can provide high power output in a small volume, which is suitable for application scenarios where space is limited.

Precise Speed And Position Control

Due to the electronic commutation mode of BLDC motors, precise speed and position control can be realized, which is suitable for applications that require high-precision control.

Quiet Operation

The brushless motor operates with low noise because there is no frictional noise from the brushes and commutators.

High Speed

BLDC motor can achieve high speed, suitable for high-speed applications, such as power tools and high-speed rotating equipment.

Better Thermal Management

The stator of brushless motors is usually surrounded by the rotor, which has a better heat dissipation effect and helps to improve the efficiency and life of the motor.

Motor Technical Data

Model	Voltage	KV	No-load		Rated Load				Stall
	Voltage	KV	Speed	Current	Power	Speed	Torque	Current	Torque	Current
	V	rpm/V	rpm	A	W	rpm	Nm	A	Nm	A
BG-7050BLDC-3627S	36	90	3240	0.9	980	2754	3.2	27.0	6.50	78
BG-7050BLDC-2440S	24	200	4800	1.9	700	4080	0.9	29.0	2.50	78
BG-7050BLDC-3661S	36	200	7200	2.4	980	6120	1.3	27.0	3.70	78
BG-7050BLDC-4881S	48	200	9600	2.8	1120	8160	1.5	23.0	4.20	68

* This data is only representative data, specific products can be customized

Mechanical Dimensions

Customizable solutions

● Can provide custom voltage, electrical performance, circuit, etc.

● And shaft, installation flange, lead wire, high-temperature class, drive, etc.

● If you have any other needs, please contact our sales engineers

Parts

1720182582350-1719576644739-1623206098114731

Applications

Details

In order to ensure that we recommend and provide you with the right brushless DC motor solution, the following key details need to be determined:

BG7050 High power 48V 1200W brushed dc Motor for robot arm 17

Application Requirements

● Specific application scenarios (e.g., industrial robots, drones, power tools, AGVs, medical devices, etc.)
● Required operating environment (e.g., temperature range, humidity, dust and water resistance, etc.)

BG7050 High power 48V 1200W brushed dc Motor for robot arm 18

Motor Specifications

● Rated voltage and current
● Rated power and peak power
● Speed range (RPM, rpm)
● Torque requirements (rated torque and maximum torque)
● Efficiency requirements

Size & Weight

● Dimensions (diameter, length, etc.)
● Weight limit

Control Requirements

● Control type (e.g., open-loop control, closed-loop control.)
● Type of sensor required (e.g. Hall sensor, encoder)

Connection And Installation

● Type and size of shaft
● Installation method (flange mounting, base mounting, etc.)
● Wiring method and connector type

Power Requirements

● Power supply type (DC power, battery, AC power, etc.)
● Rated voltage range and allowable voltage fluctuations

Environmental Conditions

● Ingress protection (e.g. IP rating)
● Operating temperature range
● Vibration and shock resistance

Other Special Requirements

● Noise level (for noise-sensitive applications, choose low-noise, low-vibration motors)
● Electromagnetic Compatibility (EMC)
● Lifetime and reliability requirements
● Certification and standards (such as CE, UL, RoHS, etc.)

By taking all of the above into account, it is possible to more precisely select the most suitable brushless motor model and configuration for a particular application.
