BG Motor Planetary Motor 1-2N.mprice

Power range:

5-30W

Voltage range:

12-48VDC

Speed range:

10-300rpm

Torque range:

1-2N.m

Life:

5000-2000h

Inquiry

more products

Send your inquiry

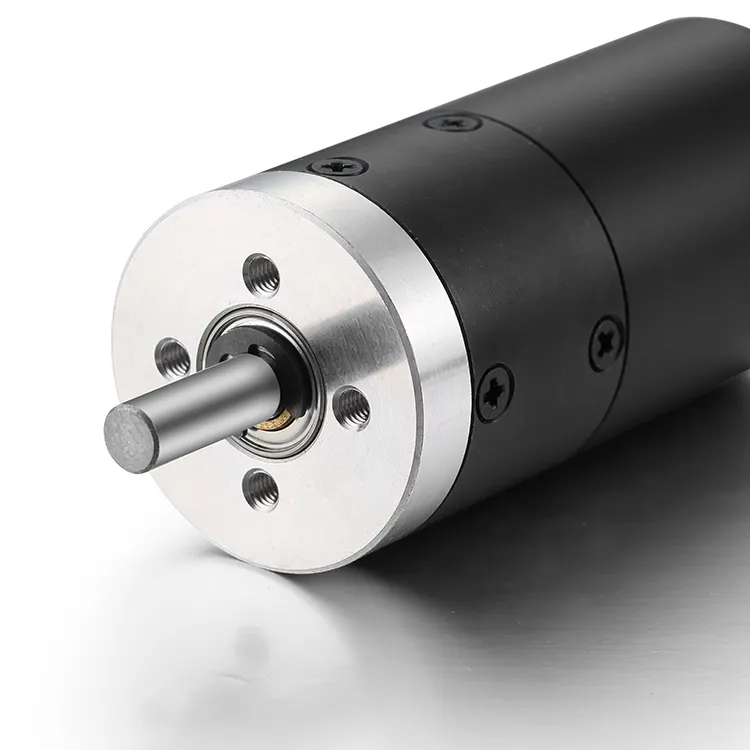

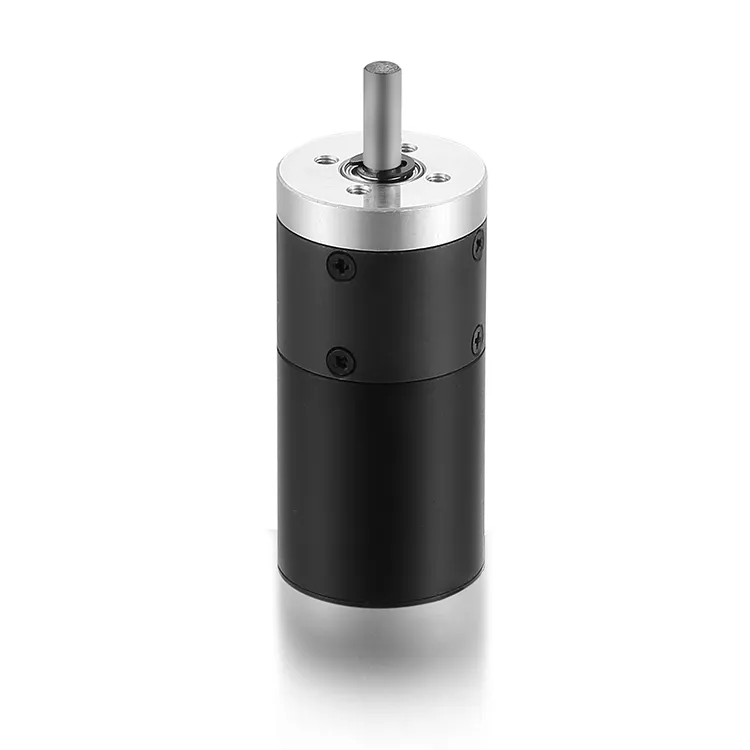

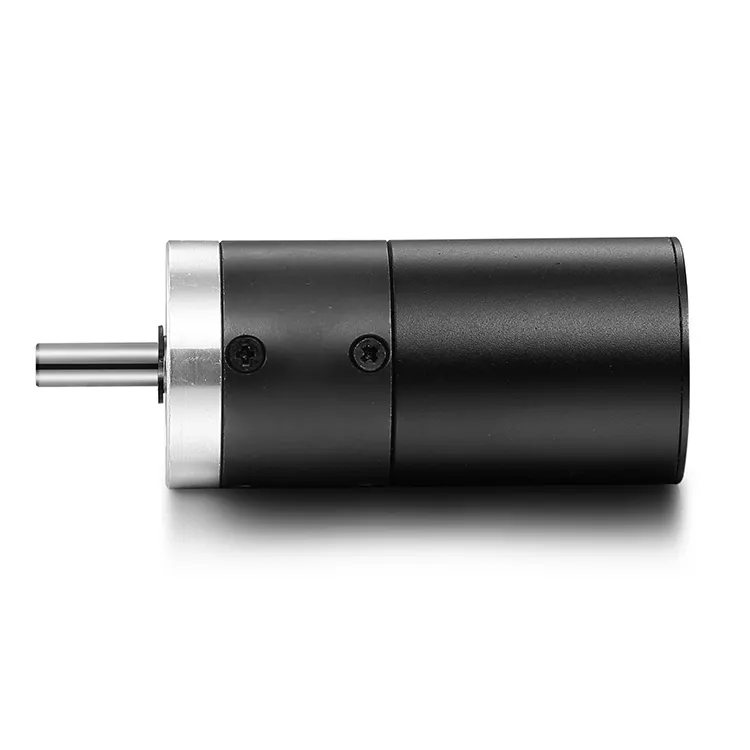

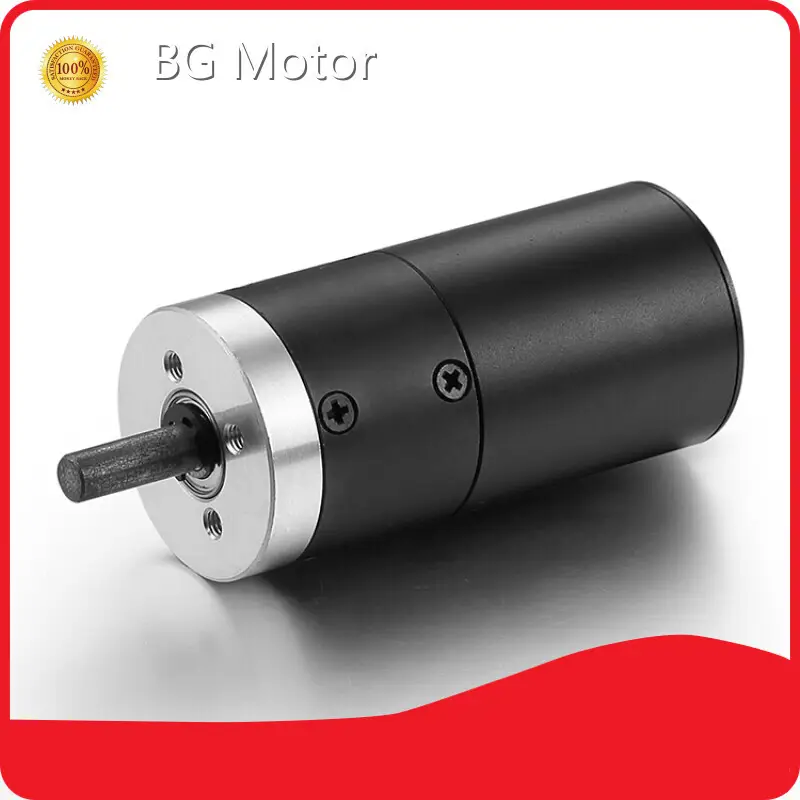

Product details of the planetary motor

Product Description

While producing BG Motor planetary motor, we highly value the importance of raw materials and choose the top one of them. This product delivers stable performance that customers require. BG Motor actively meets the needs of customers, and become a reliable partner for customers.

Information

Description

Environmental Conditons	—20℃~50℃	Work Condition	S1.S2.S3
Rotation Direction	CW/CCW	Insulation Class	B-H
Noise	≤65dB	Protection Class	IP40
Gear material	Metal	Number Of Poles	/
Bearing Type	High Quality Ball Bearing	Phase number	/
Max.Radial load	≤30N	Radial play of shaft	≤10N
Axial play of shaft	≤0.03mm	Rated tolerance torque	2N.m

Advantages

High torque output

The planetary gear structure can provide high torque output, which is suitable for small equipment that requires large torque

High efficiency

The efficiency of planetary gear reducer motor is usually relatively high, about 85%-95%.

High rigidity and precision

Planetary gears have a compact structure, which can ensure the high rigidity and precision of the transmission system.

Small size

Due to the unique design of planetary gears, it is smaller in size and light in weight while providing the same output power.

Smooth operation

Due to the uniform distribution of gears, the operation of the planetary geared motor is very smooth and the noise is low.

Motor Technical Data

Model	Voltage	No-load		Rated Load				Stall		Body Length
	Voltage	Speed	Current	Power	Speed	Torque	Current	Torque	Current	Body Length
	V	rpm	A	W	rpm	Nm	A	Nm	A	L:mm
BG-2838BLDC-1242S	12	5000	0.14	4.3	4200	0.01	0.6	0.03	1.65	37.8
BG-2838BLDC-2444S	24	5000	0.09	4.5	4400	0.01	0.3	0.03	0.90	37.8

Model	Reduction ratio	1：X	1：4	1：14	1：19	1：27	1：51	1：71	1：100	1：139
Model	Gearbox length	L:mm	28.5	36.0			43.0
BG-2838BLDC-1242S-PG28	NO-load speed	rpm	1250	357	263	185	98	70	50	36
	Rated speed	rpm	1050	300	221	156	82	59	42	30
	Rated torque	N.m	0.04	0.11	0.15	0.22	0.38	0.53	0.75	1.04

* This Data Is Only Representative Data, Specific Products Can Be Customized

Mechanical Dimensions

Customizable solutions

● Can provide custom voltage, electrical performance, circuit, etc.

● And shaft, installation flange, lead wire, high-temperature class, drive, etc.

● If you have any other needs, please contact our sales engineers

Parts

Applications

Details

In order to ensure that we recommend and provide you with the right brushless DC motor solution, the following key details need to be determined:

Scenarios and working conditions

● Determine what kind of application the geared motor will be used for, such as conveyor machinery, lifting equipment, conveyor belts, etc.● Determine operating conditions, such as ambient temperature, humidity, and whether waterproof, dustproof, and other characteristics are required.

Required output parameters

● Determine the required output speed and output torque.● Determine the required reduction ratio, i.e., the ratio of the speed of the input shaft to the output shaft.

Space constraints and installation requirements

● Determine the size and shape of the installation space● Determine if there are special installation requirements, such as vertical installation, horizontal installation, etc.

Motor performance and efficiency requirements

● Determine the requirements for motor efficiency, such as whether a high-efficiency motor is required to save energy● Determine the requirements for the stability of the motor operation and the noise level.

Economic considerations

● Consider the customer's budget constraints and recommend products that fit the budget and meet the needs.

Additional Features and Special Requirements

● If there are special functional requirements, such as self-locking function, emergency braking function, etc., you need to understand the specific needs of customers in detail.

By taking all of the above into account, it is possible to more precisely select the most suitable brushless motor model and configuration for a particular application.
