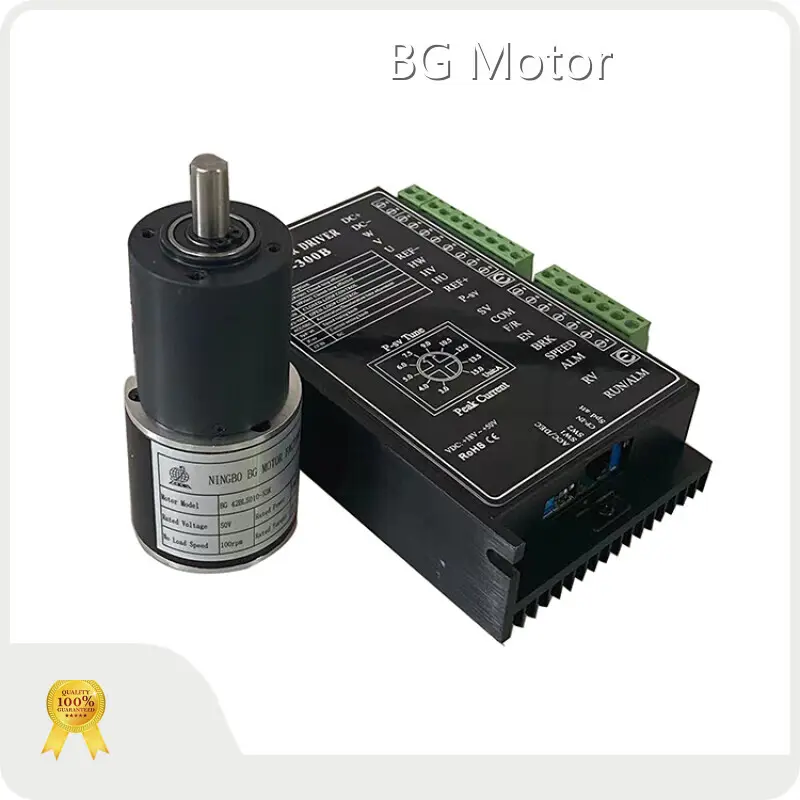

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 1

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 2

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 3

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 4

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 5

Brushless Planetary Gear Motor 5000-20000h - - BG Motor

Power range:

10-60W

Voltage range:

12-48VDC

Speed range:

34-800rpm

Torque range:

0.3-5N.m

Life:

5000-20000h

Inquiry

Information

Description

Environmental Conditons	—20℃~50℃	Work Condition	S1.S2.S3
Rotation Direction	CW/CCW	Insulation Class	B-H
Noise	≤65dB	Protection Class	IP40
Gear material	Metal	Number Of Poles	/
Bearing Type	High Quality Ball Bearing	Phase number	/

Advantages

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 6

High torque output

The planetary gear structure can provide high torque output, which is suitable for small equipment that requires large torque

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 7

High efficiency

The efficiency of planetary gear reducer motor is usually relatively high, about 85%-95%.

High rigidity and precision

Planetary gears have a compact structure, which can ensure the high rigidity and precision of the transmission system.

Small size

Due to the unique design of planetary gears, it is smaller in size and light in weight while providing the same output power.

Smooth operation

Due to the uniform distribution of gears, the operation of the planetary geared motor is very smooth and the noise is low.

Motor Technical Data

Model	Voltage	No-load		Rated Load				Stall
	Voltage	Speed	Current	Power	Speed	Torque	Current	Torque	Current
	V	rpm	A	W	rpm	Nm	A	Nm	A
BG-42BL42	24	5200	0.25	26	4000	0.063	1.8	0.189	5.4
BG-42BL68	24	4000	0.28	60	3000	0.2	2.4	0.6	7.2
BG-42BL110	24	5200	0.94	105	4000	0.25	6.6	0.75	19.8

BG-42ZYT	Reduction ratio	1:X	5	14	25	53	62	76	94
	Rated speed	rpm	800	285	160	75	64	54	43
	Rated torque	N.m	0.3	0.7	1.3	2.6	3.1	3.8	3.7

* This Data Is Only Representative Data, Specific Products Can Be Customized

Mechanical Dimensions

Customizable solutions

● Can provide custom voltage, electrical performance, circuit, etc.

● And shaft, installation flange, lead wire, high-temperature class, drive, etc.

● If you have any other needs, please contact our sales engineers

Parts

Applications

Details

In order to ensure that we recommend and provide you with the right brushless DC motor solution, the following key details need to be determined:

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 14

Scenarios and working conditions

● Determine what kind of application the geared motor will be used for, such as conveyor machinery, lifting equipment, conveyor belts, etc.● Determine operating conditions, such as ambient temperature, humidity, and whether waterproof, dustproof, and other characteristics are required.

Brushless Planetary Gear Motor 5000-20000h - - BG Motor 15

Required output parameters

● Determine the required output speed and output torque.● Determine the required reduction ratio, i.e., the ratio of the speed of the input shaft to the output shaft.

Space constraints and installation requirements

● Determine the size and shape of the installation space● Determine if there are special installation requirements, such as vertical installation, horizontal installation, etc.

Motor performance and efficiency requirements

● Determine the requirements for motor efficiency, such as whether a high-efficiency motor is required to save energy● Determine the requirements for the stability of the motor operation and the noise level.

Economic considerations

● Consider the customer's budget constraints and recommend products that fit the budget and meet the needs.

Additional Features and Special Requirements

● If there are special functional requirements, such as self-locking function, emergency braking function, etc., you need to understand the specific needs of customers in detail.

By taking all of the above into account, it is possible to more precisely select the most suitable brushless motor model and configuration for a particular application.

Company Advantages

· Every detail of BG Motor brushless planetary gear motor is delicately designed and carefully manufactured.

· Our rigorous quality control processes ensure that our products are of good quality.

· BG Motor has great confidence in quality of brushless planetary gear motor and can send samples to customers.

Company Features

· BG Motor takes the lead in the quality of brushless planetary gear motor.

· brushless planetary gear motor has gained wide recognition for its top quality.

· For years, we have worked hard to develop a deep understanding of sustainability. We constantly reduce operational waste and manage material costs fluctuations.

Application of the Product

BG Motor's brushless planetary gear motor can be used in multiple industries.

BG Motor insists on providing customers with reasonable solutions according to their actual needs.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
